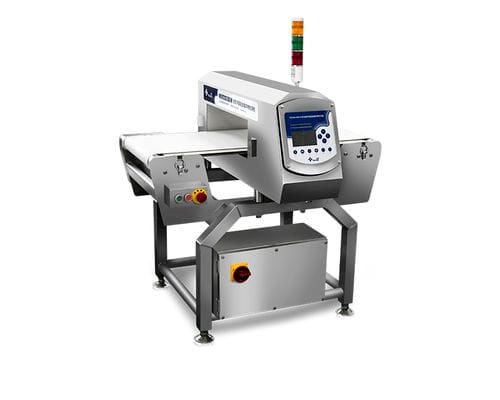

Conveyor Belt Metal Detector
Conveyor Belt Metal Detector
The first DSP conveyor belt type metal detector with Intellectual Property Rights in China, suitable for metal contaminants detection in various industries like: aquatic products, meat & poultry, salted products, pastry, nuts, vegetables, chemical raw materials, pharmacy, cosmetics, toys, etc.
| MODEL | IMD | |||
| Specifications | 4008, 4012, 4015, 4018 | 5020, 5025, 5030, 5035 | 6025, 6030 | |
| Detection Width | 400mm | 500mm | 600mm | |
| Detection Height | 80-350mm | |||
| Sensitivity | Fe | Ø 0,5-1,5mm | ||
| SUS304 | Ø 1,0-3,5mm | |||
| Detection Width | 360mm | 460mm | 560mm | |
| Loading capacity | 10-50kg | |||
| Display mode | LCD display panel (FDM touch screen optional) | |||
| Operation mode | Button input (Touch input optional) | |||
| Product storage quantity | 52kinds (100 kinds with touch screen) | |||
| Conveyor belt | Food grade PU (chain conveyor optional) | |||
| Belt speed | Fixed 25m/min (variable speed optional) | |||
| Reject mode | Alarm and belt stop (rejector optional) | |||
| Power supply | AC220V (optional) | |||
| Main material | SUS304 | |||
| Surface treatment | Brushed SUS, mirror polished, sand blasted | |||
