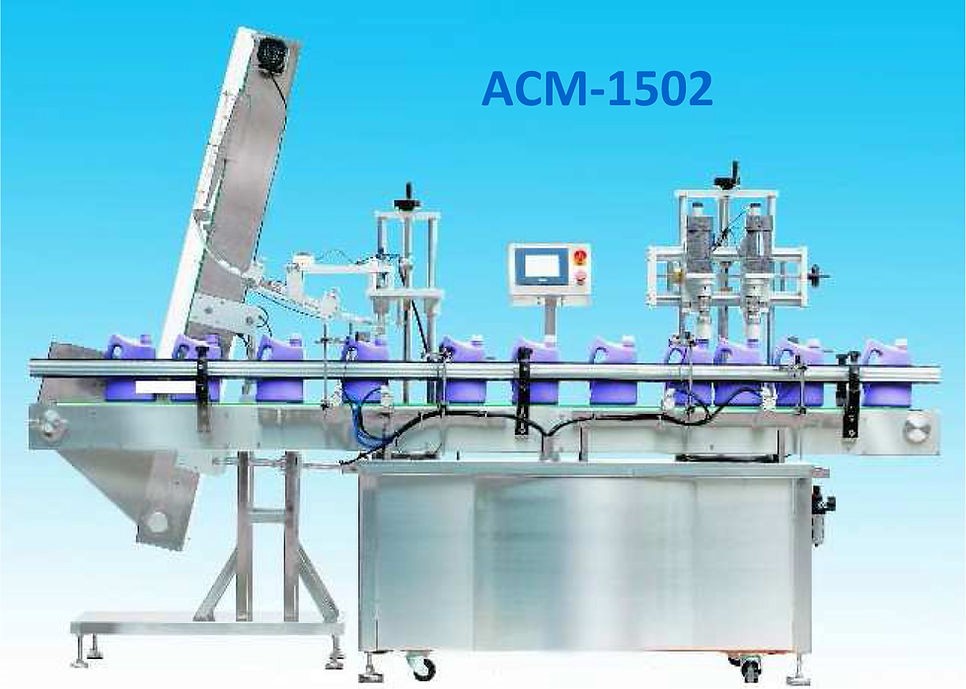

Automatic Capping/ Plugging Machine ACM-1501/ 1502
Automatic Capping/ Plugging Machine ACM-1501/ 1502
This machine is suitable for online capping & plugging of various bottles, jars, atomizer, etc…
Widely used in cosmetic, drinks, chemical, medical, food industry and more, which can highly improve productivity and product quality.
All major components are use international brand, such as Schneider, AirTAC, Mitsubishi, Panasonic, Siemens, SMC, etc…
ACM-1501 Features:
- Advanced Human Machine Interface (HMI) System, with date storage and malfunction alarm function, easy to operate.
- Suitable for difference screw cap, easy adjust.
- Double-belts bottle clamping, single-head positional capping.
- Elegant design with stainless steel and aluminum appearance.
ACM-1502 Features:
- Advanced Human Machine Interface (HMI) System, with date storage and malfunction alarm function, easy to operate.
- Suitable for bottle mouth not higher than the bottle body.
- Elegant design with stainless steel and aluminum appearance.
- Mechanical torque control, effectively prevent broken lids.
Specifications
| Model No. | ACM-1501 | ACM-1502 |
| Machine Size (mm) | L2400 X W580 X H1355 | L3000 X W810 X H1750 |
| Voltage | AC220V 50/60Hz, 1100W | AC220V 50/60Hz, 1100W |
| Bottle Height | 60-300mm | 150-400mm |
| Bottle Diameter | 15-55mm | 15-120mm |
| Cap Diameter | 20-55mm | 20-55mm |
| Capping Speed | 15-30 bpm | 15-45 bpm |
| Working air pressure | 0.4-0.6 Mpa | 0.4-0.6 Mpa |
| Cap-sender weight | 130kg | 130kg |
| Cap-sender dimension | L955 x W760 x H2100 | L955 x W760 x H2100 |
| Weight | 240kg | 405kg |
