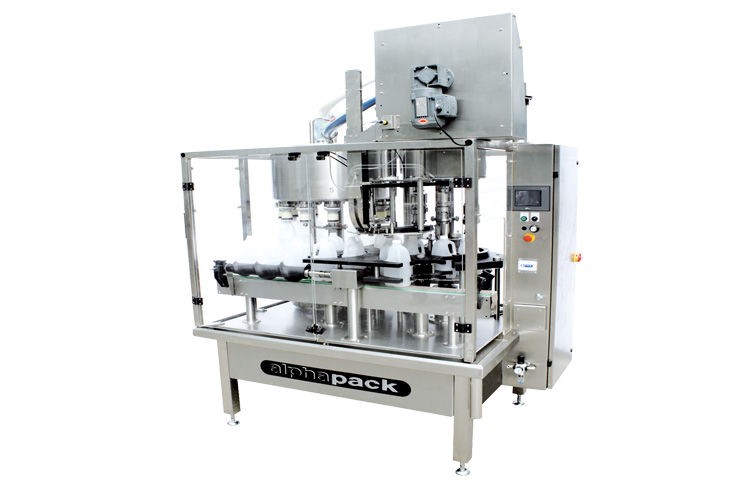

Automatic Rotary Level Filling And Capping Machine AP-FL12C6
Automatic Rotary Level Filling And Capping Machine AP-FL12C6
This machine is designed for low viscosity liquid like water, milk, juice filling and capping.
Standard Features:
- Filling, Cap sorting, Cap Inserting and Capping in one machine, high efficiency and space saving
- Gentle gravity fed filling for accurate dosing without foaming.
- Quick release change parts
- Smooth handling of containers(bottom or neck handling)
- Stainless Steel Construction, Low maintenance and down time
- High levels of SIP and CIP to ensure optimal level of hygiene, complying to GMP requirements
- No Container no fill feature to minimize product wastage
- Production friendly operation from base mounted control panel
- A safe working environment ensured by full safety guard when confirms to CE standard
- Various capping options
- Selected electrical parts
Option:
- Integral CIP system
- Container Divert/ Reject System
- Nitrogen Dosing System
- Vacuum Fill System (for higher viscosity liquid)
| Model | AP-FL12C6 |
| Filling Capacity | 100 bottles/min. (250ml) |
| Filling Range | 250m -5000ml |
| Height Range | 120-300mm |
| Round Bottle Diameter Range | 45-160mm |
| Applicable Bottle | Square, Rectangular and Oval bottle (To be confirmed upon samples) |
| Applicable Cap Type | Snap Cap, roll-on Cap, Screw Cap |
| Filling Valves No. | 12 |
