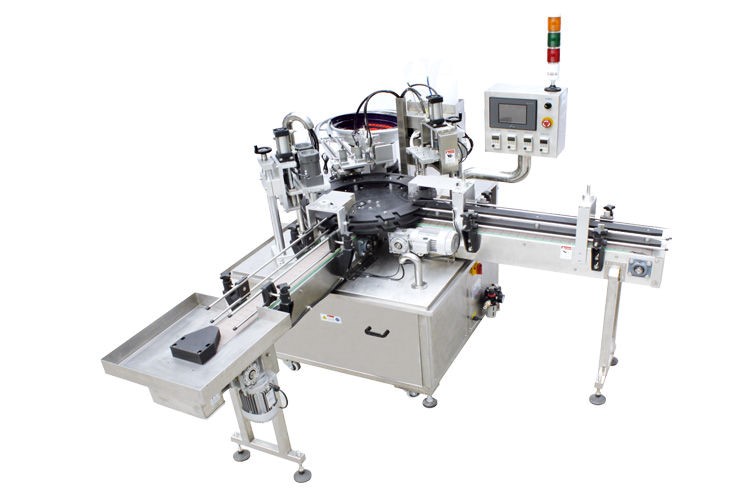

Rotor type filling machine 9888
Rotor type filling machine 9888
This small filling and capping system is designed for filling application of small volume and invariable bottle size. This machine combines filling and capping in one body, ensures compact size and practicality.
Standard Features:
- Machine construction in Stainless Steel #304.
- Variable filling device and filling nozzle can be custom made according to the filling material property and speed requirement.
- PLC combined with touch screen control system.
- Rotary cam driver separates and conveys bottles.
- No bottle, no fill, no cap, no capping.
Option:
- Variable filling device (Liquid，Ointment, Powder, Granule, etc)
- Bottle star wheel for another bottle size
- Automatic air spray bottle cleaning station
- Perfume bottle automatic steel ball dropping station
- Automatic Plug Feeder and Inserter Station
- Automatic Cap Feeder and Inserter Station (for one cap size)
- Infeed and outfeed turn table
- All contact parts made of Stainless Steel #316.
- Two lines bottles infeed, two nozzles filling, Double capacity
- Thermal Seal for bottle mouth
| Model | 9888 | 9888/2 |
| Ideal Filling Range | A:5-50ml; B:25-250ml; C:50-500ml; D:100-1000ml | A:5-50ml; B:25-250ml; C:50-500ml; D:100-1000ml |
| Lane No | 1 | 2 |
| Capacity | 15-20b/min | 30-40b/min |
| Voltage | 220V/1 ph | 220V/1ph |
