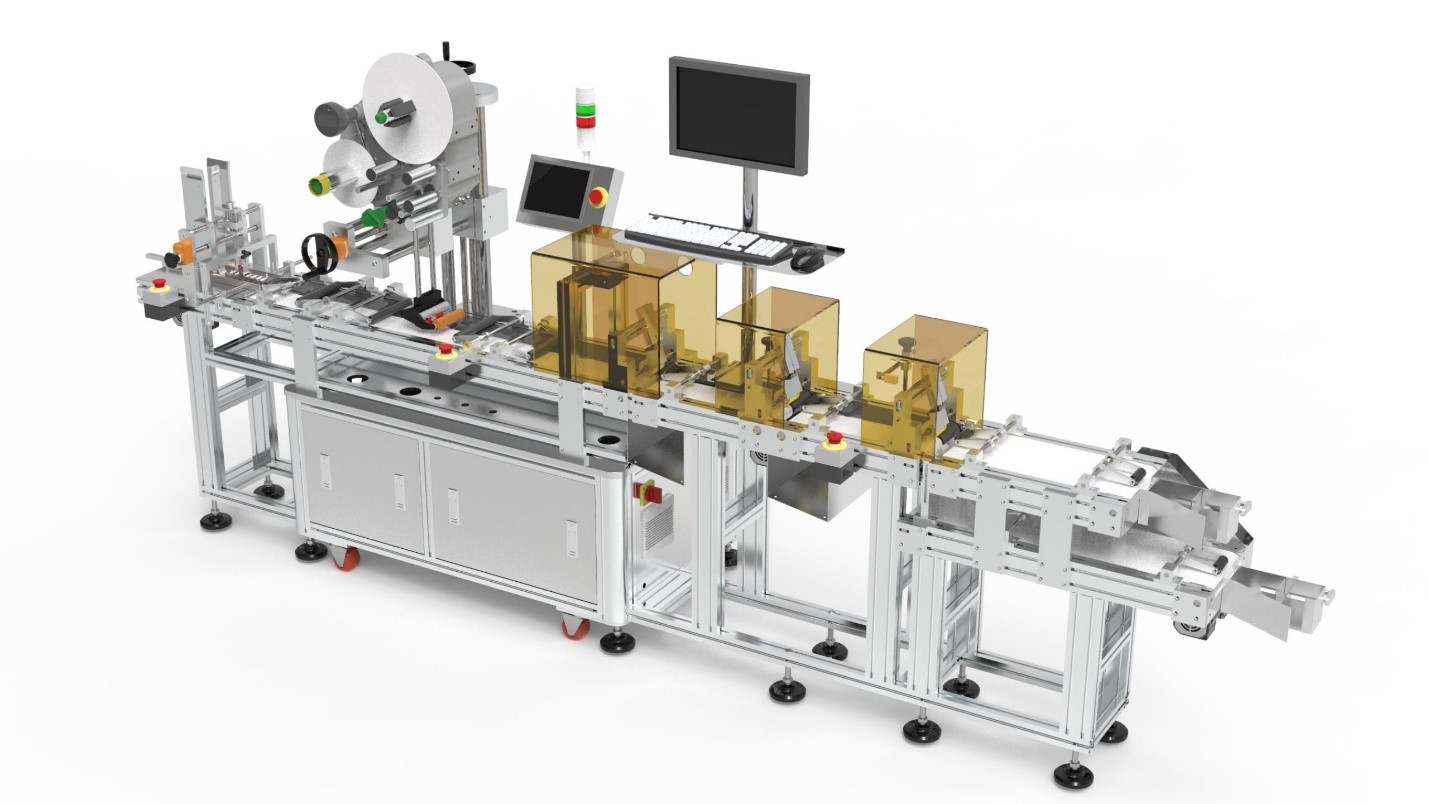

Cloth Hang Tag Labeling machine
Cloth Hang Tag Labeling machine
SKILT tag label applicator have made for Nike, Adidas, Levis, Muji, UA, ZARA, CK project, for more information, Pls ref case.
1.Feeder: Paging device, can put about 500pcs tag one time, delivery out one by one；
- Labeling: When tag delivery to the labeling position, past RFID sticker on tag surface directly;labeling engine use German Novexx ALS204, for demending 24/7 countinous operation, tandem function for non-stop production , IP65;
- RFID detection: If RIFD label on tags can not reading, eliminate substandard tag to the bottom collection box ;
- Visual Inspection: If labeling accuracy more than ±1mm, eliminate substandard tag to the bottom collection box ;
- #1 collection conveyor : With counter function for stack collection ；
- #2 collection conveyor: When #1 reach to the counter number, will auto switch to the #2 conveyor , convenient for worker take tags out.
| Model | PM-DPM-A |
| Driving Model | Servo motor & German NOVEXX |
| Label material | Self-adhesive sticker, opaque or transparent label |
| Yield（pcs/min） | 50-200pcs/min |
| Suitable label size | L:10-300mm，H:10-250mm |
| Suitable tag size | L: 30-300mm , W:30-200mm |
| Voltage | 110V/220V/380V |
| Machine size | 2200（L）× 800(W)× 1600 (H) mm |
