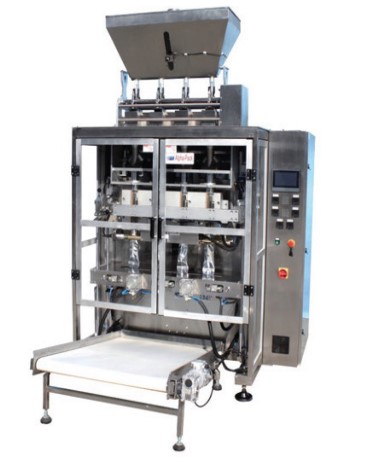

MULTI-LINE STICK PACKING MACHINE MLP-800A-04/MLP-800B-04/MLP-800B-06
MULTI-LINE STICK PACKING MACHINE MLP-800A-04/MLP-800B-04/MLP-800B-06
- The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming, date code printing, bag sealing and cutting. And hole punching as option.
- Motor driven heat seal film pulling system.
- High sensitive fiber optic photo sensor can automatically trace color mark accurately.
- PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
- PID temperature controller monitors heat sealing temperature within ±1°C
| MODEL | MLP-800A-04 | MLP-800B-04 | MLP-800B-06 |
| BAG L mm | 70-200 | 70-200 | 70-200 |
| BAG W mm | 40-95 | 40-95 | 35-60 |
| FILM W mm | Max 800 | ||
| Capacity ppm | 120-180 | 120-180 | 160-270 |
| Lines numbers | 4 | 4 | 6 |

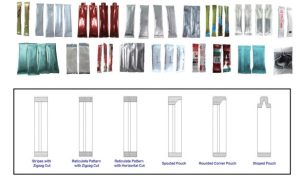

| Sealing format | Fin seal or Envelope seal | ||
For powder auger filler min stick pack W is min 25mm
