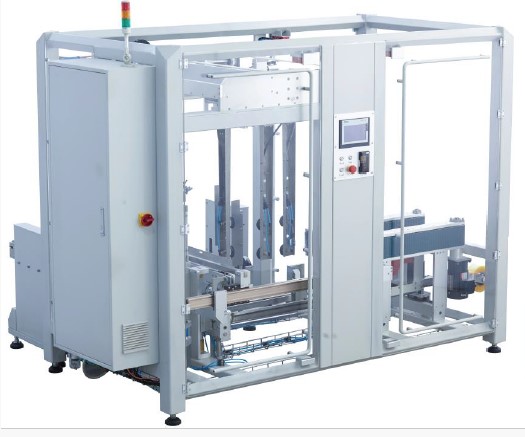

APCE-45 High-Speed Servo Vertical Carton Erector
APCE-45 High-Speed Servo Vertical Carton Erector
High-Speed Servo Vertical Carton Erector
| Speed | 20ctns/min |
| Carton size | Length：250-600mm Width：180-450mm Height：150-500mm |
| Power supply | 380V / 50Hz |
| Power | 3 KW |
| Airsupply | 6 kg/cm2 |
| Air interface | 1/2 inch |
| Tape size | 48 mm、60 mm、72mm（choice one size） |
| Tape diameter | Max 250mm |
| Air consumption | 300 NL/min |
| Table size | 600~650mm |
| Machine size | L3000 mm ×W2600 mm ×H2000 mm |
| Weight | 1050 kg |
