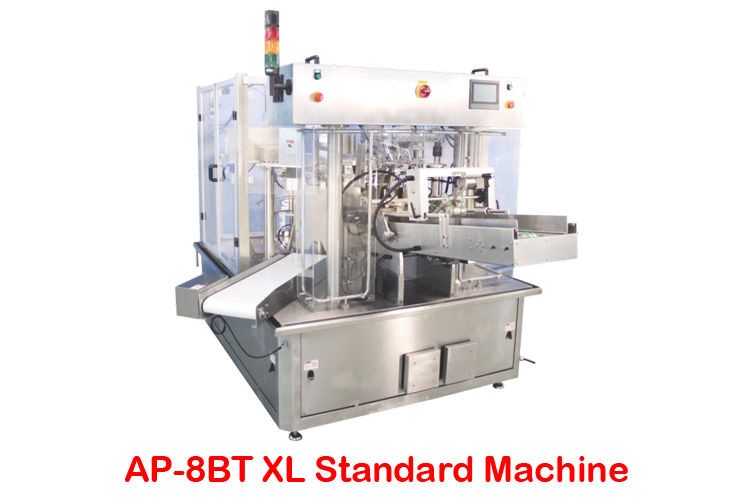

Rotary Filling and Sealing Machine for Premade Pouches AP-8BT/ AP-8BT-XL
Rotary Filling and Sealing Machine for Premade Pouches AP-8BT/ AP-8BT-XL
These automatic rotary machines are ideal for a wide variety of pre-made pouch packaging with second filling or cold sealing functions. Couple with different doser, they can full-fill any application with effective and efficiency.
- Powder: Wheat flour, soup –
(By use auger System) - Granule: Sugar, Seasoning –
(By use Volumetric Measure or Scale) - Liquid: Detergent，Shampoo, Rinse, Drinks –
(By piston pump or rotary Pump) - Paste: Retort food-
(By spiral pump or rotary Pump)
Standard Feature:
Intermittent rotary machine with 6 or 8 Stations is designed for handling Pre-made pouches such as Flat and Stand-up Pouches (with/without Zip)
- Operating and adjusting via TOUCH SCREEN.
- Fault indication on the TOUCH SCREEN.
- Hygienic Construction and Easy cleaning.
- High quality and long life of all machine part.
- Integration of various filler, such as Auger filler weighting machine, volumetric filler, Liquid filler, Paste filler and other special filler.
- Simple integration of peripheral equipment.
Safety Device:
- No pouch – No fill – No seal
- Pouch open error – No fill – No seal
- Heater disconnection alarm
- Machine stop at abnormal air pressure
- Machine stop when safety guard is open or electrical cabinet is open
- Safety guard
- Non-open Pouches could be recycled
Packing Process:
- Pouch feeding conveyor & pick up the pouch
- Date coding & Zipper open device (option)
- Open the bottom of pouch, for self-stand pouch
- Pouch top opening
- First filling position
- Second filling position (option)
- First sealing position
- Second sealing position (cold seal) and Pouch feed out conveyor
Standard Equipment:
- Bag Infeed Conveyor
- Bag opening blade with full opening detector
- I.D. temperature controller
- Stainless Steel Construction
- Graphical color-touch panel
- Discharge conveyor
| MODEL | AP-8BT | AP-8BT-XL |
| Max filling volume mL | 2000 | 5000 |
| Bag Length (mm) | 150-300 | 200-450 |
| Bag width (mm) | 100-250 | 150-00 |
| Max capacity (ppm) | 20-45 | 15-35 |
| Pouch format | Flat, Doypack, Stand-Up, Zipper, Side Spout, Gusset pouch… | |
