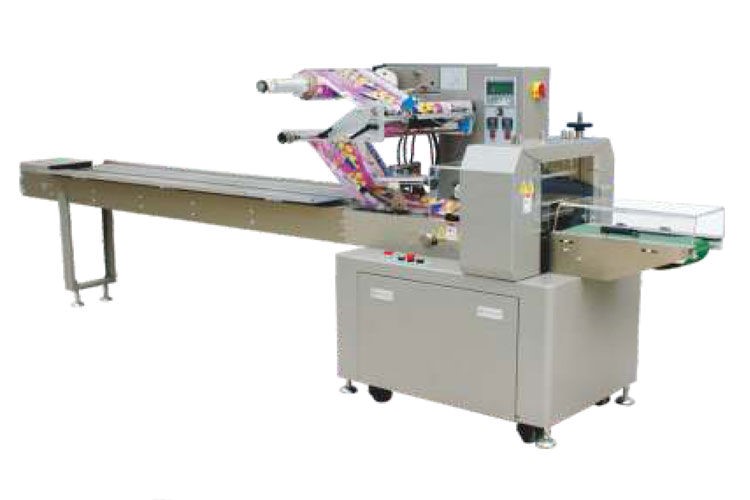

Dual-inverter Horizontal Flow Wrapping Machine AHP-100 / 320 / 450
Dual-inverter Horizontal Flow Wrapping Machine AHP-100 / 320 / 450
This wrapper is applicable for packing all kinds of solid and regular objects, including the foods such as biscuit, bread, instant noodle, ice cream, moon cake and soft sweets, and other objects such as toilet soap, medicated essence, note book, pen pack, tape and medicines in regular shapes.
- Simplified mechanic structure, easy to maintenance, less vibration, less wear and long durable.
- The main control circuit takes the single chip developed by our own company, digital screen display and control by frequency inverter.
- The capacity and bag length are controlled by double frequency inerter, controlled with step-less speed shift and wide adjustment. It can match well with the former working production line.
- Highly sensitive respond optical-eye device can trace the eye mark automatically and accurately. It is not necessary to adjust manually after setting.
- Independent temperature control for each sealer makes the perfect and tight sealing and suitable for a wide variety of flexible packing materials.
| MODEL | AHP-100 | AHP-320 | AHP-450 |
| BAG L (mm) | 65-160 | 100-270 | 200-600 |
| BAG W (mm) | 35-100 | 35-160 | 50-180 |
| BAG H (mm) | 5-35 | 5-50 | 5-75 |
| Capacity (ppm) | 35-200 | 35-180 | 20-90 |
| Power kW | 2,7 | 3 | 3,5 |
| Motor power kW | 0,6 | 0,6 | 0,6 |
| Heating power kW | 2,1 | 2,9 | 2,4 |
| Film width mm | 80-220 | 80-370 | 120-480 |
| Number of jaw | double | double | single |
| Machine weight kg | 450 | 600 | 650 |
| Size LxWxH mm | 4000x920x1600 | 4000x950x1600 | 4000x950x1600 |
