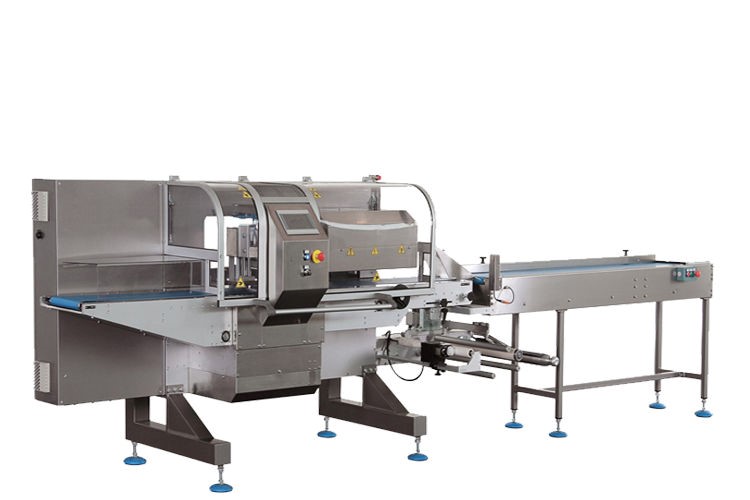

Horizontal Flow Pack Machine (Bottom Film Box Motion) AHP-700-3S-BBM
Horizontal Flow Pack Machine (Bottom Film Box Motion) AHP-700-3S-BBM
This horizontal flow wrapper is applicable for packing pillow pack of various irregular, bulky, sticky or loose products, such as egg rolls, ice cream, jelly candy, pizza, bread, etc.
- Main machine structure in steel with covers in stainless steel.
- Product contact parts in stainless steel.
- Easy access to electric and pneumatic parts.
- 2000 mm long infeed conveyor with nylon pushers (standard).
- Adjustable forming box
- Three sets of wheels for longitudinal sealing with pneumatic opening and pre-heating bars
- Transverse continous box motion sealing jaw.
- Reel holder with expanding shaft.
- 1000 mm long discharge conveyor belt complete of AC motor.
- Four brushless servomotors
- Servomotor for the belt under the fin wheels
- Motorised film unwinding
- High-resolution 7” touch screen integrated control panel.
- Remote maintenance.
- Power 6/9 Kw. Voltage 400V-3-50 Hz.
- CE conformity
MODEL | AHP-700-3S-BM |
Wrapping speed | 50-60psc/min |
Film width | 600-700mm |
Bag length | 50-600mm |
Max bag height | 120mm |
Voltage | 400V, 3 Phase, 50Hz |
Power | 6,9kW |
