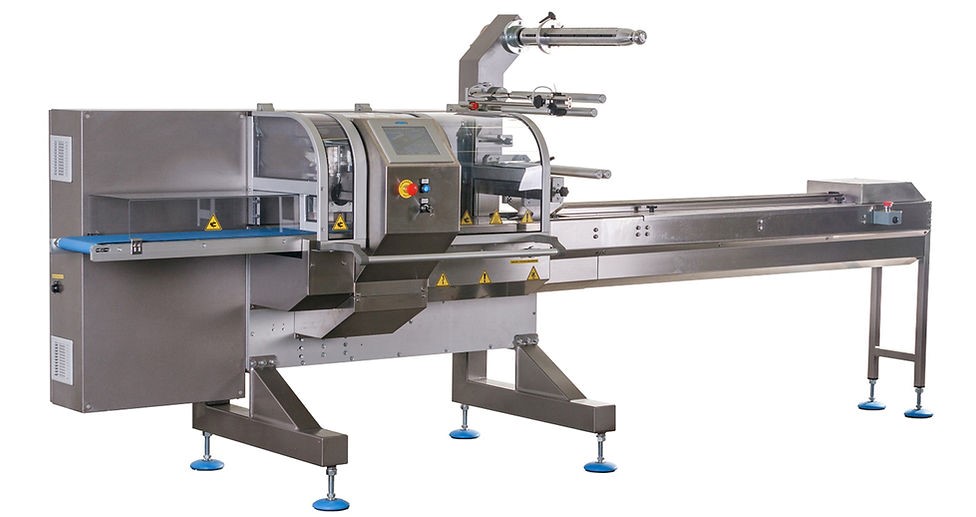

Top Film Rotary Sealing Horizontal Flow Pack Machine AHP-600-3S
Top Film Rotary Sealing Horizontal Flow Pack Machine AHP-600-3S
This machine is applicable for packing all kinds of solid and regular objects, including the foods such as biscuit, bread, instant noodle, ice cream, moon cake and soft sweets, and other objects such as toilet soap, medicated essence, note book, pen pack, tape and medicines in regular shapes.
- Main machine structure in steel with covers in stainless steel.
- Product contact parts in stainless steel.
- Easy access to electric and pneumatic parts.
- 2000 mm long infeed conveyor with nylon pushers (standard).
- Three sets of wheels for longitudinal sealing.
- 1 up transverse rotary sealing jaw.
- Reel holder with expanding shaft.
- 1000 mm long discharge conveyor belt complete of AC motor.
- Three brushless servomotors.
- High-resolution 7” touch screen integrated control panel.
- Remote maintenance.
- Power 3/6 Kw. Voltage 400V-3-50 Hz.
- CE conformity
| MODEL | AHP-600-3S |
| Wrapping speed | Up to 120psc/min |
| Film width | 500-700mm |
| Bag length | 50-600mm |
| Max bag height | 120mm |
| Voltage | 400V, 3Phase, 50Hz |
| Power | 3,6kW |
